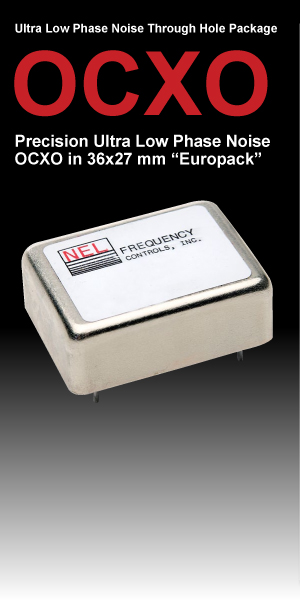

• SC-cut crystal

• High Stability

• Low Aging

• Ultra Low Phase Noise Option:

Standard(L)

-105 dBc/Hz at 1Hz;
-140 dBc/Hz at 10Hz;
-169 dBc/Hz on the floor

Premium(P)

-112 dBc/Hz at 1Hz;
-145 dBc/Hz at 10Hz;
-170 dBc/Hz on the floor

Ultimate(U)

-115 dBc/Hz at 1 Hz;
-146 dBc/Hz at 10Hz;
-170 dBc/Hz on the floor

Extraordinary(E)

-120 dBc/Hz at 1 Hz;
-148 dBc/Hz at 10 Hz;
-173 dBc/Hz on the floor

• Sine Wave or HCMOS/TTL output

• Ideal for telecommunication systems,
GPS, instrumentation, radar COTS/dual use
